Index Buffer 🟢¶
Resulting code: step034-next
Resulting code: step034-vanilla-next
The index buffer is used to separate the list of vertex attributes from the actual order in which they are connected. To illustrate its interest, let us draw a square, which is made of 2 triangles.
Index data¶
A straightforward way of drawing such a square is to use the following vertex attribtues:
std::vector<float> vertexData = {
// Triangle #0
-0.5, -0.5, // A
+0.5, -0.5,
+0.5, +0.5, // C
// Triangle #1
-0.5, -0.5, // A
+0.5, +0.5, // C
-0.5, +0.5,
};
But as you can see some data is duplicated (points \(A\) and \(C\)). And this duplication could be much worst on larger shapes with connected triangles.
A more compact way of expressing the square’s geometry is to separate the position from the connectivity:
// Define point data
// The de-duplicated list of point positions
std::vector<float> pointData = {
-0.5, -0.5, // Point #0 (A)
+0.5, -0.5, // Point #1
+0.5, +0.5, // Point #2 (C)
-0.5, +0.5, // Point #3
};
// Define index data
// This is a list of indices referencing positions in the pointData
std::vector<uint16_t> indexData = {
0, 1, 2, // Triangle #0 connects points #0, #1 and #2
0, 2, 3 // Triangle #1 connects points #0, #2 and #3
};
The index data must have type uint16_t or uint32_t. The former is more compact but limited to \(2^{16} = 65 536\) vertices.
Note
I also keep the interleaved color attribute in this example, my point data is:
std::vector<float> pointData = {
// x, y, r, g, b
-0.5, -0.5, 1.0, 0.0, 0.0,
+0.5, -0.5, 0.0, 1.0, 0.0,
+0.5, +0.5, 0.0, 0.0, 1.0,
-0.5, +0.5, 1.0, 1.0, 0.0
};
// This is a list of indices referencing positions in the pointData
std::vector<uint16_t> indexData = {
0, 1, 2, // Triangle #0 connects points #0, #1 and #2
0, 2, 3 // Triangle #1 connects points #0, #2 and #3
};
Using the index buffer adds an overhead of 6 * sizeof(uint16_t) = 12 bytes but also saves 2 * 5 * sizeof(float) = 40 bytes, so even on this very simple example it is worth using.
This split of data reorganizes our buffer initialization method:
bool Application::InitializeBuffers() {
{{Define point data}}
{{Define index data}}
// We now store the index count rather than the vertex count
m_indexCount = static_cast<uint32_t>(indexData.size());
{{Create point buffer}}
{{Create index buffer}}
return true;
}
In the list of application attributes, we replace m_vertexBuffer with m_pointBuffer and m_indexBuffer, and replace m_vertexCount with m_indexCount.
private: // Application attributes
wgpu::Buffer m_pointBuffer = nullptr;
wgpu::Buffer m_indexBuffer = nullptr;
uint32_t m_indexCount = 0;
private: // Application attributes
WGPUBuffer m_pointBuffer = nullptr;
WGPUBuffer m_indexBuffer = nullptr;
uint32_t m_indexCount = 0;
And as usual, we release buffers in Terminate()
m_pointBuffer.release();
m_indexBuffer.release();
wgpuBufferRelease(m_pointBuffer);
wgpuBufferRelease(m_indexBuffer);
// It is not easy with the auto-generation of code to remove the previously
// defined `vertexBuffer` attribute, but at the same time some compilers
// (rightfully) complain if we do not use it. This is a hack to mark the
// variable as used and have automated build tests pass.
(void)m_vertexBuffer;
(void)m_vertexCount;
Buffer creation¶
Of course the index data must be stored in a GPU-side buffer. This buffer needs a usage of BufferUsage::Index.
// Create index buffer
// (we reuse the bufferDesc initialized for the vertexBuffer)
bufferDesc.size = indexData.size() * sizeof(uint16_t);
{{Fix buffer size}}
bufferDesc.usage = BufferUsage::CopyDst | BufferUsage::Index;
m_indexBuffer = m_device.createBuffer(bufferDesc);
m_queue.writeBuffer(m_indexBuffer, 0, indexData.data(), bufferDesc.size);
// Create index buffer
// (we reuse the bufferDesc initialized for the vertexBuffer)
bufferDesc.size = indexData.size() * sizeof(uint16_t);
{{Fix buffer size}}
bufferDesc.usage = WGPUBufferUsage_CopyDst | WGPUBufferUsage_Index;;
m_indexBuffer = wgpuDeviceCreateBuffer(m_device, &bufferDesc);
wgpuQueueWriteBuffer(m_queue, m_indexBuffer, 0, indexData.data(), bufferDesc.size);
Important
A writeBuffer operation must copy a number of bytes that is a multiple of 4. To ensure this, we must ceil the buffer size up to the next multiple of 4 before creating it:
bufferDesc.size = (bufferDesc.size + 3) & ~3; // round up to the next multiple of 4
This means that we must also make sure that indexData.size() is a multiple of 2 (because sizeof(uint16_t) is 2):
indexData.resize((indexData.size() + 1) & ~1); // round up to the next multiple of 2
Render pass¶
To draw with an index buffer, there are two changes in the render pass encoding:
Set the active index buffer with
renderPass.setIndexBuffer.Replace
draw()withdrawIndexed().
renderPass.setPipeline(m_pipeline);
// Set both vertex and index buffers
renderPass.setVertexBuffer(0, m_pointBuffer, 0, m_pointBuffer.getSize());
// The second argument must correspond to the choice of uint16_t or uint32_t
// we've done when creating the index buffer.
renderPass.setIndexBuffer(m_indexBuffer, IndexFormat::Uint16, 0, m_indexBuffer.getSize());
// Replace `draw()` with `drawIndexed()` and `m_vertexCount` with `m_indexCount`
// The extra argument is an offset within the index buffer.
renderPass.drawIndexed(m_indexCount, 1, 0, 0, 0);
wgpuRenderPassEncoderSetPipeline(renderPass, m_pipeline);
// Set both vertex and index buffers
wgpuRenderPassEncoderSetVertexBuffer(renderPass, 0, m_pointBuffer, 0, wgpuBufferGetSize(m_pointBuffer));
// The second argument must correspond to the choice of uint16_t or uint32_t
// we've done when creating the index buffer.
wgpuRenderPassEncoderSetIndexBuffer(renderPass, m_indexBuffer, WGPUIndexFormat_Uint16, 0, wgpuBufferGetSize(m_indexBuffer));
// Replace `draw()` with `drawIndexed()` and `m_vertexCount` with `m_indexCount`
// The extra argument is an offset within the index buffer.
wgpuRenderPassEncoderDrawIndexed(renderPass, m_indexCount, 1, 0, 0, 0);

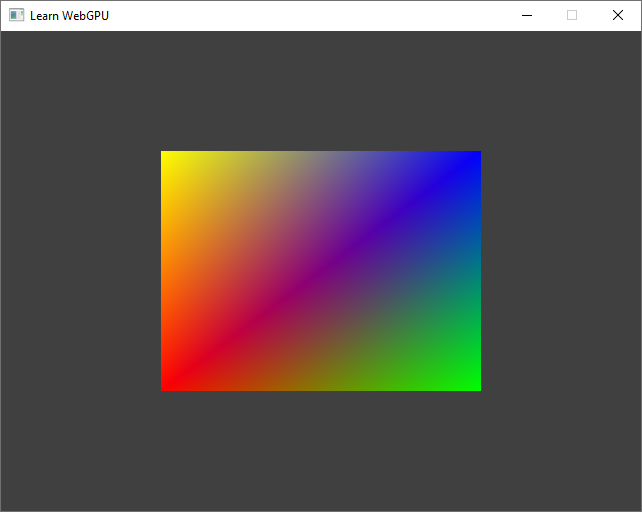

We now see our “square”, with color highlighting how the red and blue points (\(A\) and \(C\)) are shared by both triangles:
The square is deformed because of our window’s aspect ratio.¶
Ratio correction¶
The square we obtained is deformed because its coordinates are expressed relative to the window’s dimensions. This can be fixed by multiplying one of the coordinates by the ratio of the window (which is \(640/480\) in our case).
We could do this either in the initial vertex data vector, but this will require is to update these values whenever the window dimension changes. A more interesting option is to use the power of the vertex shader:
// In vs_main():
let ratio = 640.0 / 480.0; // The width and height of the target surface
out.position = vec4f(in.position.x, in.position.y * ratio, 0.0, 1.0);
var out: VertexOutput; // create the output struct
{{Vertex shader position}}
out.color = in.color; // forward the color attribute to the fragment shader
return out;
Although basic, this is a first step towards what will be the key use of the vertex shader when introducing 3D transforms.
Note
It might feel a little unsatisfying to hard-code the window resolution in the shader like this, but we will quickly see how to make this more flexible thanks to uniforms.

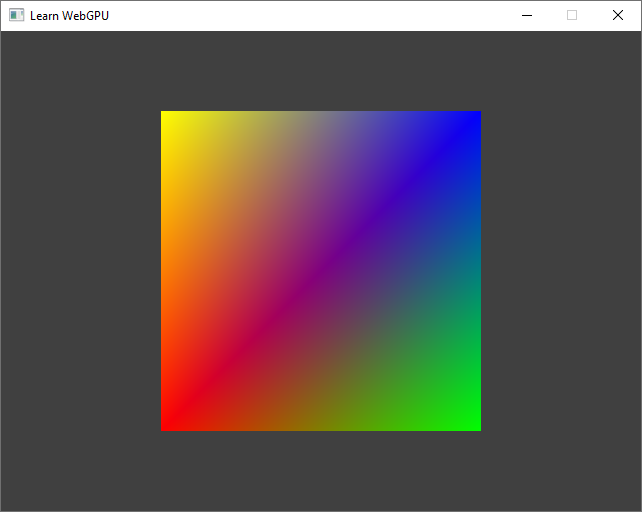

The expected square¶
Conclusion¶
Using an index buffer is a rather simple concept in the end, and can save a lot of VRAM (GPU memory).
Additionally, it corresponds to the way traditional formats usually encode 3D meshes in order to keep the connectivity information, which is important for authoring (so that when the user moves a points all triangles that share this point are affected).
Note however that this only works when the common vertices share all their attributes. Two vertices that have the same position but a different color are still considered as different points, because the vertex shader must run for each of them individually.
